TIGR
NUCLEAR RADIATION, TEMPERATURE, AND HUMIDITY MONITOR
The TIGR device is a multifunctional detector designed to monitor the ionizing radiation dose rate at a single measurement point, as well as temperature and humidity. The system can issue commands to ventilation and filtration equipment when the user-defined alarm threshold for DER or humidity is exceeded (for the purpose of ventilating the shelter). It can serve as a primary measurement device in light home shelters, basements, garages, and similar locations.
Applications:
- Fallout shelters
- Civil defense
- Basements
Versions:
- TIGR-1BTH – Basic version
Technical parameters:
• Measurement of temperature, humidity, and dose equivalent rate (DER)
• Temperature measurement range: -50 to +85 °C
• DER management module measurement range: 100 nSv/h to 100 mSv/h
• Humidity measurement range: 0 to 100% RH
• Capability to operate in high relative humidity environments
• External and auxiliary power input: 12-24V, 500mA; internal rechargeable battery (up to 6 hours of operation)
• 2 relay outputs (max. 3A 250V) for ventilation control commands
• 1 alarm output (max. 3A 250V)
• Resistance to electric fields up to Ef = 1kV/m²
• Enclosure standard: IP56
• Maintenance-free operation: up to 5 years
• Device dimensions: 130x70x60 mm
• Total weight: <1 kg
• Front panel language options: Polish, English, or Ukrainian/Russian.
Harmonized standards compliance:
• IEC61326-1
• IEC61000-3-2
• IEC6100-3-3
• IEC61000-4-2
• IEC6100-4-3
• IEC61010-1

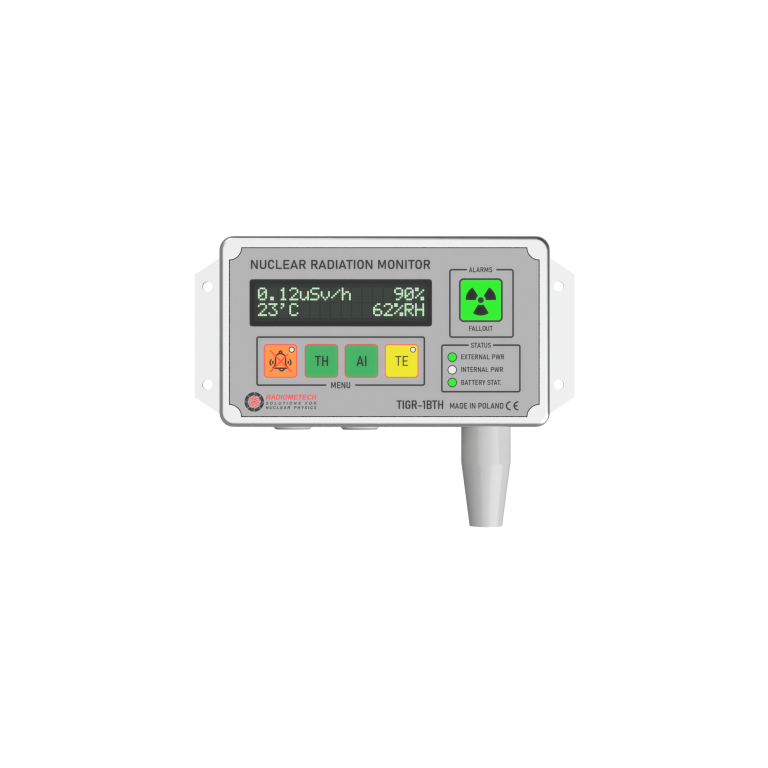

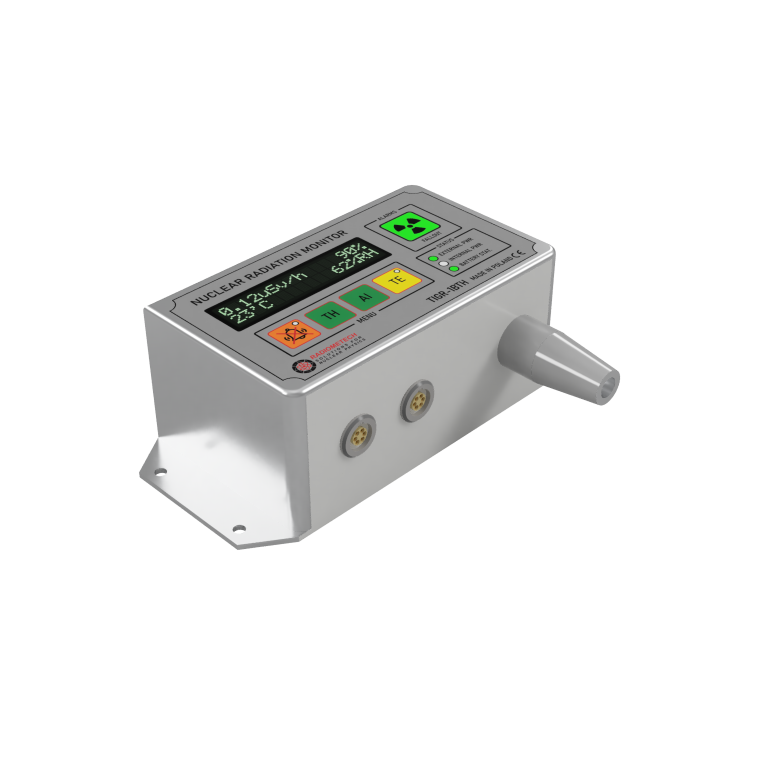

TIGR-1BTH BASIC VERSION
