Radiometech

HANGETSU

SCINTILLATION GAMMA SURVEY METER

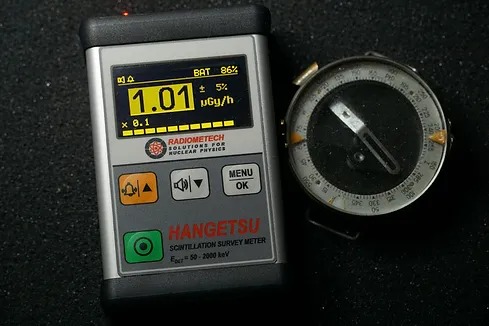

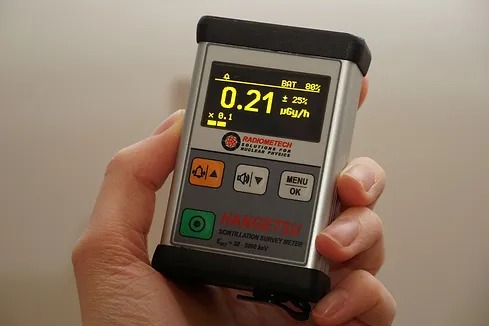

HANGETSU is a gamma radiation scintillation survery meter. The detection element is an organic fast scintillator coupled with a semiconductor photomultiplier. It has predefined calibrations and gain stabilization. Two alarm thresholds (Low and High), several sound signaling modes, built-in Li-Ion battery with charger are just some of the features of HANGETSU. The device is closed in an aluminum housing with a 1.52 inch OLED display and an elegant membrane keyboard.

Application examples:

•    Radiation protection
•    Mining industry
•    Speleology
•    Civil defense
•    Hazard identification and risk assessment.

MAIN PARAMETERS

  • Dimensions:                          57 x 86 x 26mm

  • OLED display resolution:    128×64 px

  • Power:                                    Build-in Li-Po 600 mAh

  • Charging:                               5V/1500 mA

  • Alarms types:                        Audio & visual

  • Detector type:                       Organic scintillator + SiPM

  • Detector active volume:      4 cm3

  • Energy range:                        50 – 2000 keV

  • Dose rate range:                   0,08 – 500 µGy/h

  • Screen-saver function:         With ticking, with alarm

  • Ingress Protection class:      IP61
